About Product

Edge Server – 2U Intel® Xeon® Scalable server system


Specification

  • 2nd Gen. Intel® Xeon® Scalable Processors
  • 6-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • Dual 1Gb/s LAN ports (Intel® I210-AT)
  • 1 x Dedicated management port
  • 6 x 2.5" hot-swappable HDD/SSD bays
  • 1 x Ultra-Fast M.2 and with PCIe Gen3 x4 bandwidth
  • 2 x Full-height Full-length PCIe Gen3 expansion slots
  • Dual 850W 80 PLUS Platinum redundant/hot-swap power supply

Buy Now

xeon

2nd Generation Intel® Xeon® Scalable Family Ready

GIGABYTE’s servers are fully ready to support the second generation of Intel® Xeon® Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:

  • Intel® Optane™ DC Persistent Memory:

    Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology

  • Overall Performance:

    Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors

  • Increased DDR4 Memory Speed & Capacity:

    Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported

  • Intel Deep Learning Boost:

    Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)

  • Security:

    Hardware mitigations for Meltdown / Spectre security vulnerabilities

Intel® Xeon® Scalable Family Processors

GIGABYTE’s Intel® Xeon® Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.

* SKU compatibility will depend on the maximum CPU TDP supported for each system, please refer to each product’s specification page for further information
xeon
  • Intel® QAT:

    Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).

  • Intel® AVX-512:

    Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.

  • Intel® VROC:

    Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And GIGABYTE Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.

  • Intel® Omni-Path:

    Selected GIGABYTE servers support CPU SKUs with integrated Intel Omni-Path Fabric connection

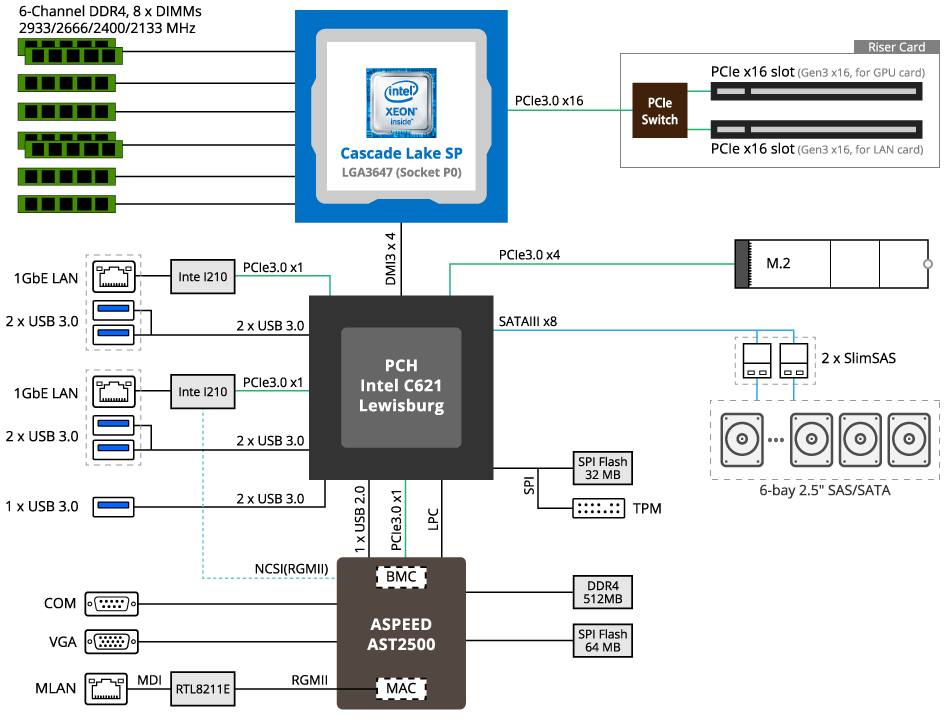

E251-U70 System Block Diagram

diagram

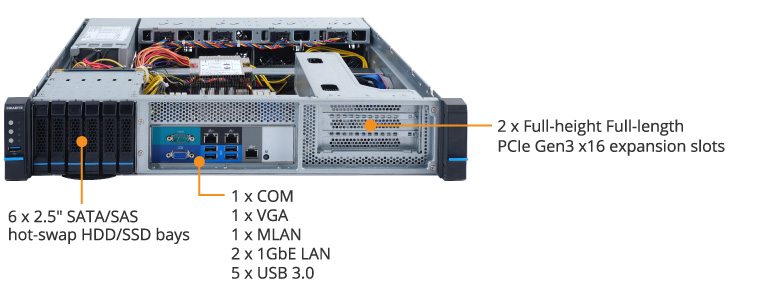

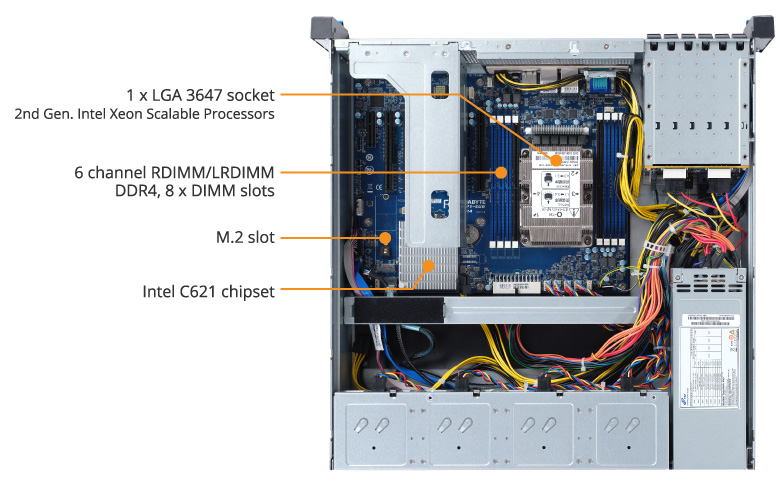

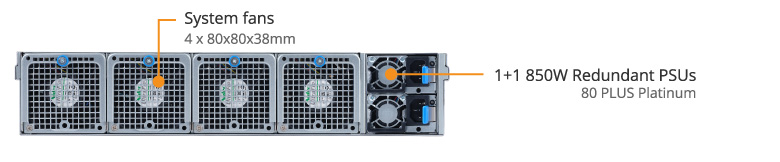

E251-U70 Product Overview

diagram diagram diagram

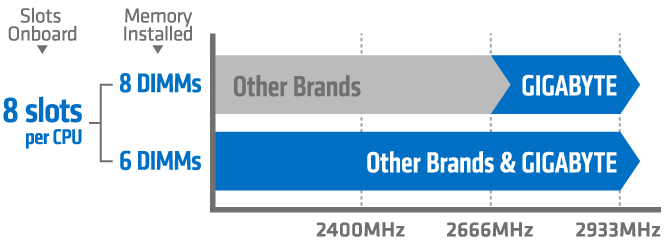

Max Memory Speed Even at 2 DPC

With GIGABYTE unique solution, maximum memory speed is now supported, even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!

speci-1
speci-1

Optimized for High TDP

GIGABYTE systems are thermally designed with the highest rated CPU SKUs in mind so that top performance is enabled which ever Xeon Scalable CPU you choose.

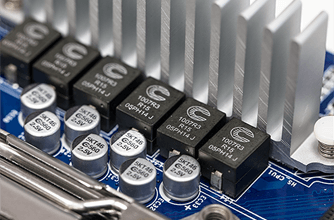

Carefully Selected Components

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.

speci-1
speci-1

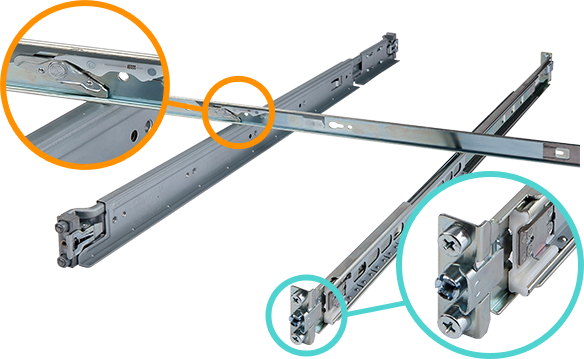

Ease of Deployment and Management

GIGABYTE continues to be responsive to market needs and to create user-friendly solutions, including:

  • Tool-less rail kit included as a default across all new server models
  • Supplying multiple connector options and tools where appropriate

Efficient, Reliable Power Supply

GIGABYTE SERVER Xeon Scalable servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.

speci-1
speci-1

Intelligent Power Management Features

To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.

SCMP (Smart Crises Management / Protection)

SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost. In a 2U 4 Node server, only two nodes will be switched to low power mode, while two remaining nodes can continue normal operation. When the fault is resolved or the PSU is replaced, the system will automatically return to normal power mode.

speci-1
